SMTCL HTC63H Fanuc Double Guide Rails High Precision Slant Bed CNC Lathe 0

Product Description

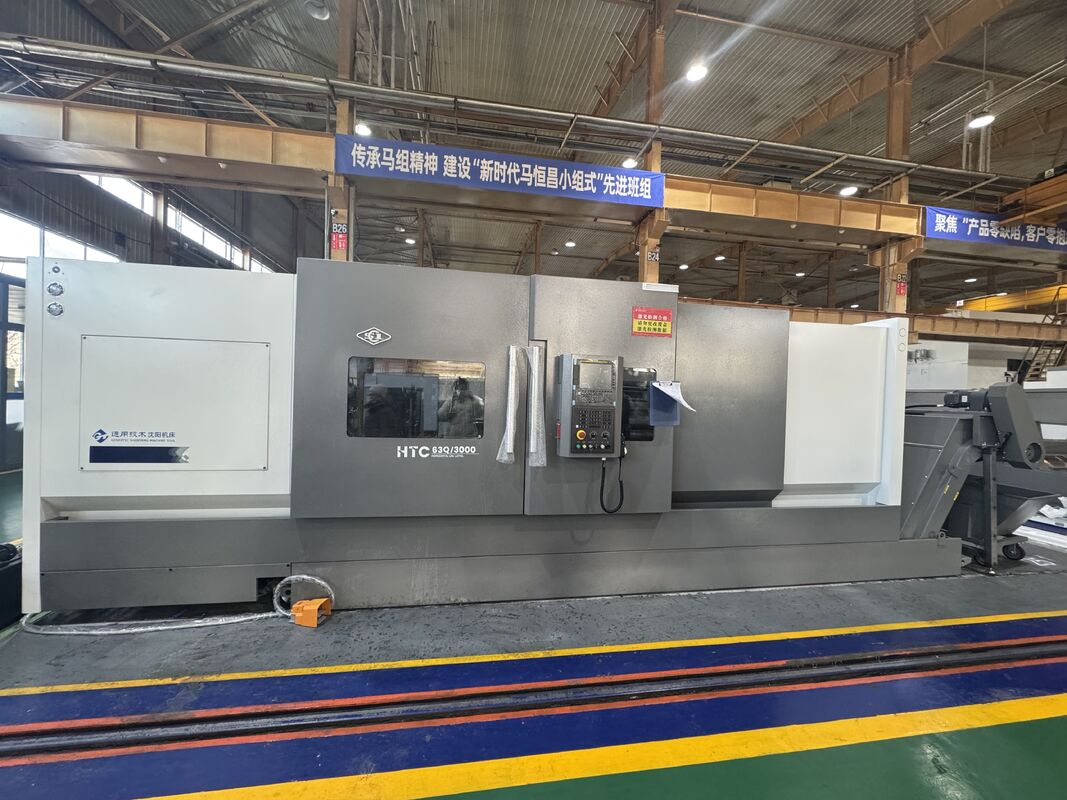

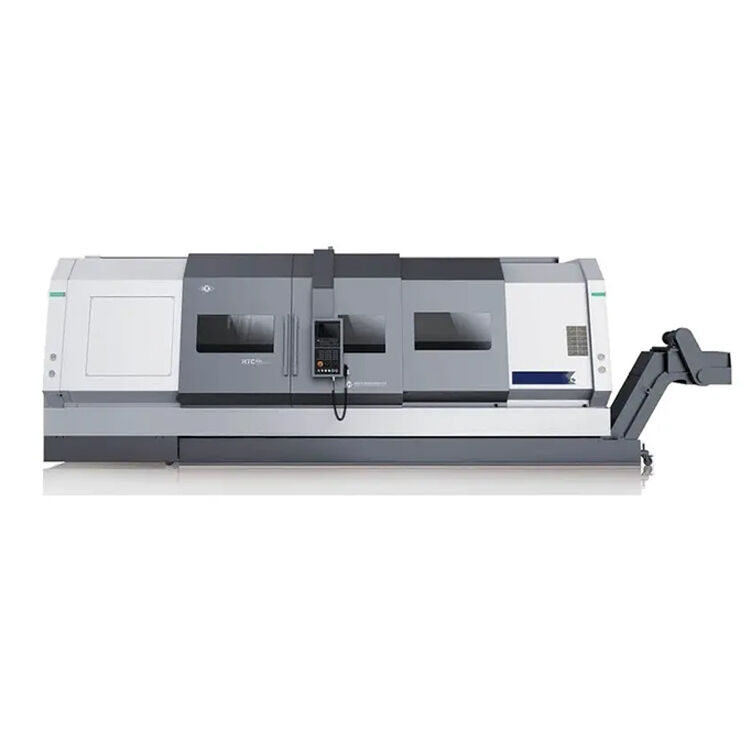

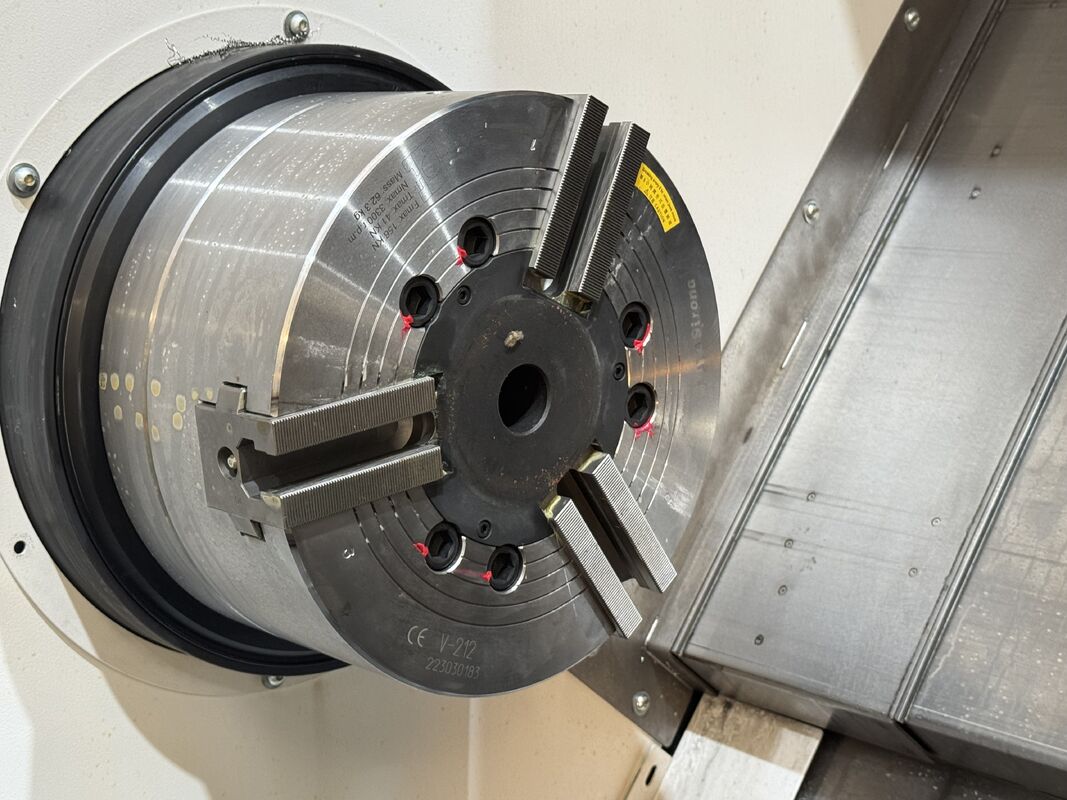

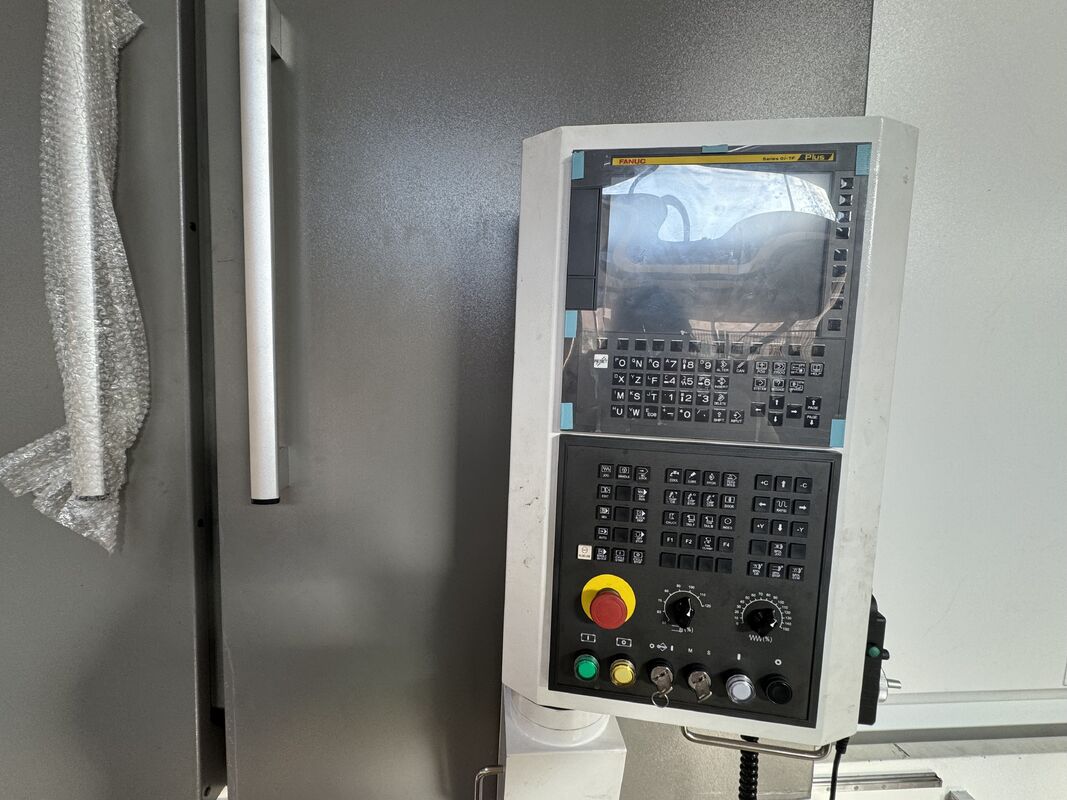

SMTCL HTC63H Fanuc Double Guide Rails High Precision Slant Bed CNC Lathe

HTC63Q/H/S series CNC horizontal lathe saddle adopts internal brace double guide rail structure, with large

span and strong rigidity. The whole machine is more rigid when the inner hole is machined. The spindle adopts

a two-gear headstock, which has a high rotary speed and a large cutting torque. It can effectively meet the

parts machining demand of engineering machinery, automotive, metallurgy, casting and other industries.

Product Features

1,High precision

◆ High-precision screw and guide rail
◆ High-precision spindle bearings
◆ Process standard quantification
◆ High-precision grating ruler

2,High efficiency
◆ System modular code application
◆ Complete functional conf iguration, enabling intelli gent production

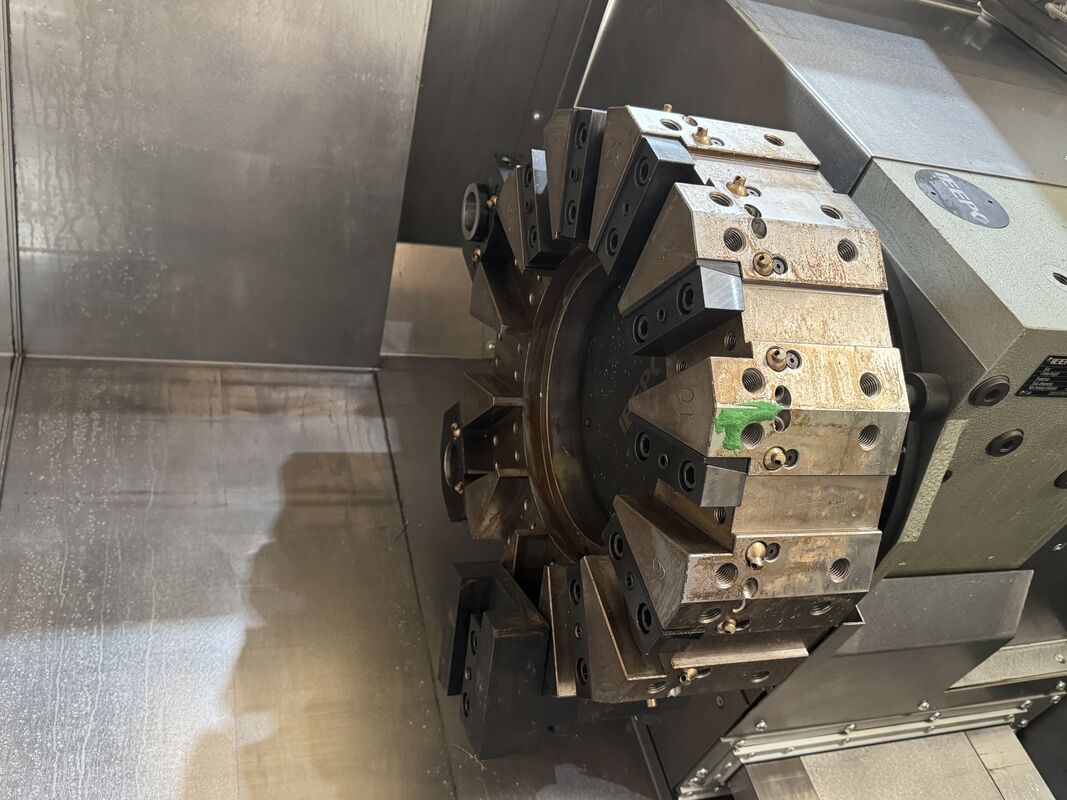

◆ High-efficiency servo turret
◆ High-performance,heavy-duty cutting spindle

3,High rigidity
◆ High-quality cast iron body and other key castings
◆ Long-span headstock
◆ High-power and large-torque spindle
◆ High-rigidity tool carriage

Product Details

High-precision screws and guide rails

It uses high-quality imported C3-grade screws and H-grade guide rails, and is directly driven by servo motors to achieve excellent operating accuracy

High-precision spindle cylindrical roller bearings

It adopts high-quality imported P4 grade cylindrical roller bearings and cooperates with high-precision spindle to achieve excellent rotation accuracy.

High speed two axis

The two axis use imported screws and use pre-stretching technology to ensure fast and stable operation of the machine tool

Complete functional configuration, enabling

intelligent production

Different module configurations such as steady rest, sub-spindle, servo tailstock, and Y-axis can

be optional according to different workpiece requirements. It can realize multi-sequence processing of workpieces, and can also beequipped with workpiece measurement, tool

setter, automation modules, etc., to improve work efficiency.

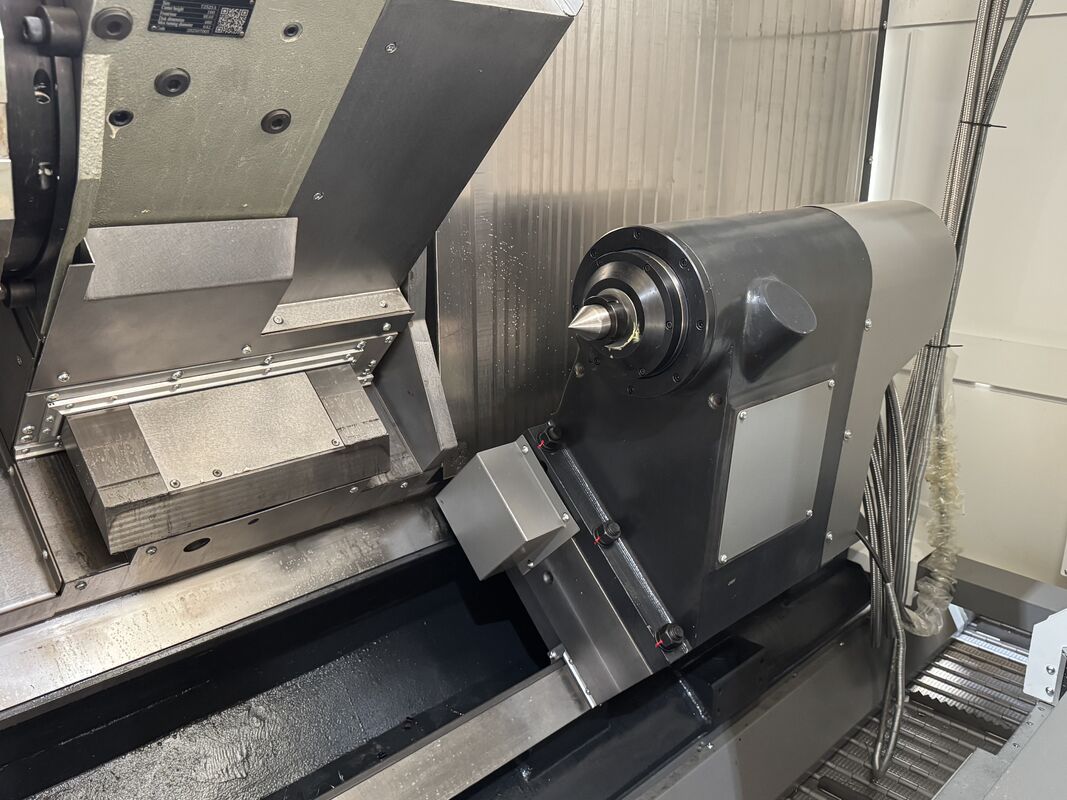

Small spindle tailstock

It is equipped with a small spindle structure tailstock, and internally installed tapered roller

bearings and angular contact ball bearings to improve the cutting rigidity of the tailstock end and ensure the cutting effect of long-axis parts.

High rigidity bed

The bed is a 45° inclined bed, with an optimized and reinforced rib structure inside. It is cast in one piece with high-quality castings, and the entire axis adopts a hard rail structure, which effectively improves dynamic stiffness. The joint between the bed and the headstock is scraped and ground by a double-rest surface, which further improves the cutting rigidity of the whole machine.

Product Paramenters

Items	Units	HTC63Q	HTC63H	HTC63S
Max.cutting dia.(shaft/disk)	mm	Φ630/Φ630	Φ630/Φ800	Φ630/Φ800
Maximum cutting length	mm	1000/1500/2000/3000	1000/1500/2000/3000	1000/1500/2000/3000
Max.swing dia. over bed	mm	Φ700	Φ820	Φ820
Max.swing dia.over bed gap	mm	Φ600	Φ650	Φ650
Spindle
Spindle nose model	-	A2-11	A2-11	A2-15
Front bearing inner dia.	mm	Φ160	Φ160	Φ200
Spindle taper and hole size		1:20;Φ150	1:20;Φ150	1:20;Φ150
Dia. of spindle hole Max.	mm	Φ104	Φ106	Φ140
Max.bar dia.	mm	Φ85	Φ88	Φ125
Standard chuck dia.	inch	12"	15"	18"
Spindle speed range	r/min	35-2000	35-2000	35-2000
Spindle max.torque	Nm	1250	1900	3800
Spindle speed series		Mechanical two gears	Mechanical two gears	Mechanical two gears
Main motor output power continuous/30 min.	kW	20/30	22/26	30/37
X/Z axis
X-axis rapid traverse speed	mm	15	12	12
Z-axis rapid traverse speed	mm	15	12	12
X-axis travel	mm	320	430	430
Z-axis travel	mm	1100/1600/2100/3100	1050/1550/2050/3050	1050/1550/2050/3050
Tailstock
Tailstock travel	mm	900/1400/1900/2900	850/1350/1850/2850	850/1350/1850/2850
Tailstock drive method		Saddle drag	Saddle drag	Saddle drag
Tailstock sleeve travel	mm	150	180	180
Tailstock sleeve dia.	mm	Φ160	Φ180	Φ180
Tailstock taper hole taper		Morse 5#	Morse 6#	Morse 6#
Tool turret
Tool turret form		12-station horizontal servo tool carriage	12-station horizontal servo tool carriage	12-station horizontal hydraulic tool carriage
Center height	mm	160	160	160
Tool size	mm	32×32	32×32	32×32
If could choose tool nearby	mm	yes	yes	yes
Maximum load capacity
Disc workpieces	kg	800	800/2000	1000
Shaft workpieces	kg	1300	2000	3000
Others
Distance between spindle center and floor	mm	1085.5	1160	1160
Machine weight	kg	7000/8500/10000/12500	13000/16000/19000/22000	13000/16000/19000/22000

OUR Service

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us

SMTCL HTC63H Fanuc Double Guide Rails High Precision Slant Bed CNC Lathe 1

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory

SMTCL HTC63H Fanuc Double Guide Rails High Precision Slant Bed CNC Lathe 2

FAQ

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
