Name: SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe
Brand: Shanghai HD ME Tech Co., Ltd.
SKU: HTC125300
Availability: InStock

Haus > produits > Flachbett CNC-Drehbank >

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe

Max swing diameter 1250mm

Metallurgy valve industry processing CNC Lathe

SMTCL Heavy Turning Lathe

Herkunftsort:

China

Markenname:

SMTCL

Zertifizierung:

CE ISO

Modellnummer:

HTC125300

Dokumentieren:

1-GT SMTCL HTC125 Large fla...he.pdf

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Marke:

SMTCL

Typ:

HTC125500

Produktname:

Horizontale Flachbett-CNC-Drehmaschine

Maximaler Schwungdurchmesser über dem Bett:

1250 mm

Maximale Schneidlänge:

5000 mm

Maximaler Schneiddurchmesser:

1250 mm

X -Achse -Reise:

650 mm

Z -Achsenreise:

5000 mm

Tool -Post -Typ:

Vertikal 4-Position

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Satz

Verpackung Informationen

Holzpaket Standard für den Seeschifffahrt

Lieferzeit

30 Tage

Versorgungsmaterial-Fähigkeit

50 Sätze pro Monat

VERWANDTE PRODUKTE

Video

SMTCL Automatische Drehmaschine Metall CAK100 Serie Chuck Durchmesser 1000mm Schwerlast Flachbett CNC Drehmaschine

Beste Preis erhalten

Video

SMTCL Schwere CNC-Drehmaschine 5000mm HTC125500 Horizontales Flachbett CNC Schwere Drehmaschine

Beste Preis erhalten

Video

CNC Drehmaschine CAK6385 Servomotor 4 Stationen Turm Metall CNC Drehmaschine

Beste Preis erhalten

Video

CNC-Drehmaschine CAK63285 Flachbett CNC-Drehmaschine 4 Stationen Turm mit Servomotor

Beste Preis erhalten

Kontakt mit uns

+8613916455787

sales@huidijd.com

86-021-61195255

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe 0

Product Description:

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe

HTC125500 has many excellent selling points:

First of all, it has strong processing capabilities. HTC125300 can be widely used in general machinery, construction machinery, molds and other industries. It can perform high-precision and high-efficiency cutting processing and has strong cutting ability, easily coping with the processing needs of various complex workpieces.

Secondly, it can be equipped with a fixed facing head, which greatly expands the processing range. Whether it is a large workpiece or a workpiece with a special shape, a suitable processing solution can be found.

Moreover, it adopts advanced design and manufacturing technology. The double oil cylinder balance design ensures the stability and reliability of the machine tool during operation, reduces vibration and improves processing accuracy.

In addition, Shenyang Machine Tool HTC125300 is easy to operate and easy to use. The intelligent control system enables operators to quickly and accurately adjust parameters and improve production efficiency. At the same time, as a well-known brand, Shenyang Machine Tool has a perfect after-sales service system to provide users with timely and professional technical support and maintenance guarantees, leaving users without worries.

Product Features:

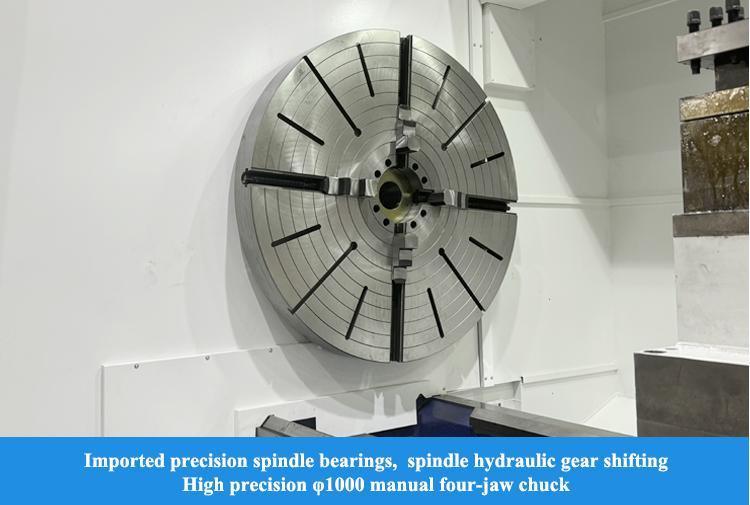

headstock:

Selection of imported precision spindle bearings, high precision fire grinding gear, spindle hydraulic shift Chuck: Selection of domestic well-known brands, clamping force, clamping reliable

Z-axis drive:

SIEMENS/FANUC original servo motor, screw drive for machine tools with less than 5m stroke, rack drive for machine tools with 6m and above

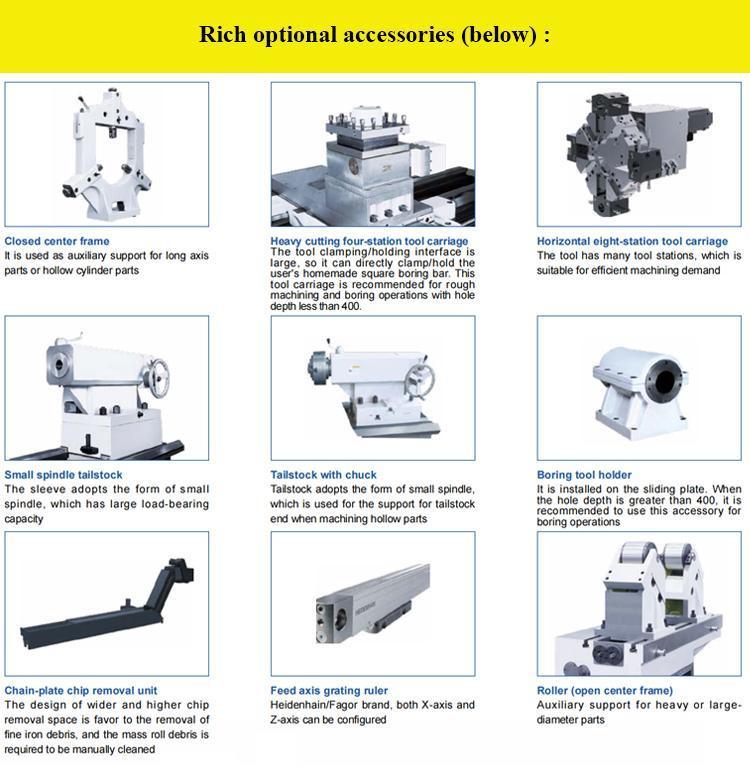

Steady rest:

Various specifications closed center frame (can be equipped with rollers)

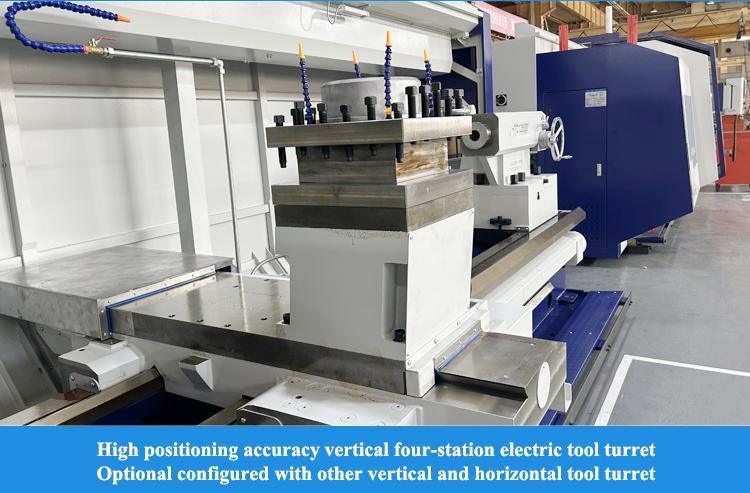

Tool rest:

Domestic vertical four-station electric tool holder, can be selected with other vertical and horizontal tool holder, high positioning accuracy, strong rigidity, high reliability

Bed saddle, skateboard:

Casting bed saddle, skateboard, reasonable internal rib layout, high precision ball screw or rack and pinion, high precision, accurate transmission

Control console:

Siemens servo system, to achieve high-speed, high-precision, high-stability servo control, optional FANUC system

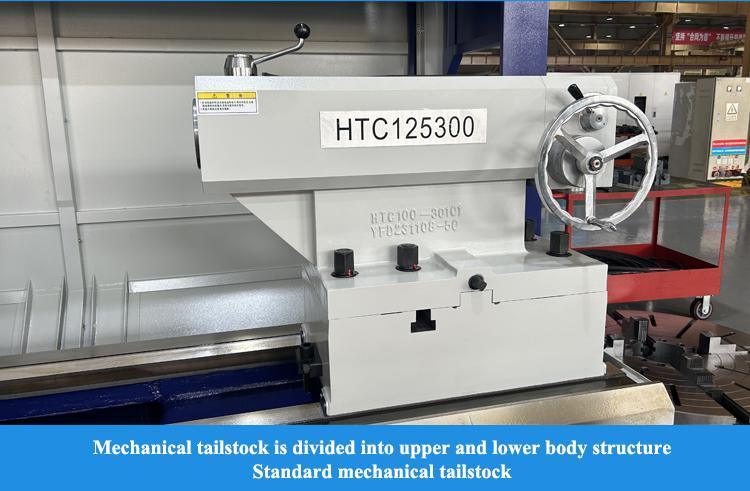

Tailstock:

Mechanical tail seat is divided into upper and lower body structure. Standard mechanical tailstock

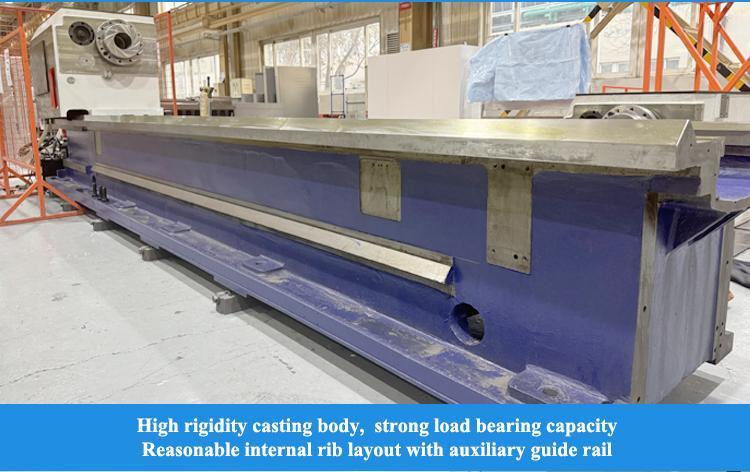

Body:

Casting bed with reasonable internal rib layout and auxiliary guide rail, with high rigidity, strong bearing capacity, good stability and so on. (6m and above specifications of the bed with a long section splicing form)

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe 9

Industry application:

SMTCL Heavy Turning Lathe HTC125500 Max swing diameter 1250mm Metallurgy, valve industry processing CNC Lathe 10

Product Paramenters:

Items	Unit	HTC 125500
Maximum swing diameter over bed	mm	1250
Maximum workpiece holding length (distance between centers)	mm	5100
Maximum cutting length	mm	5000
Maximum cutting diameter	mm	1250
Maximum swing diameter over cross slide	mm	850
Spindle nose type and code		A2-15
Spindle front end bore taper		Metric 140
Spindle bore diameter	mm	130
Hydraulic variable speed headstock
Spindle speed range	r/min	5-500
Maximum output torque of spindle	Nm	7500
Spindle speed steps		Hydraulicly 3steps, infinitely variable speeds at each step
Power of main motor	kW	22
Chuck
Diameter/type of chuck	mm	1000/manual four-claw
X-axis rapid traverse speed	m/min	6
Z-axis rapid traverse speed	m/min	5
X-axis travel	mm	650
Z-axis travel	mm	3000
Mechanical tailstock
Tailstock sleeve diameter	mm	160
Tailstock sleeve travel	mm	300
Tailstock sleeve taper		Mohs 6#
Tool post type		Vertical 4-position
Tool size	mm	40*40
Maximum load capacity
Disc workpieces	kg	1000
Shaft workpieces	kg	5000
Machining accuracy		IT6-IT7
Roundness of workpiece machined	mm	0.005
Consistency of machining diameter	mm	0.025/300
Planeness of workpiece machined	mm	0.02/300
Surface roughness of workpiece machined
Cylindrical surface		Ra l.6μm
Circular cambered surface Conical surface		Ra 3.2μm
Positioning accuracy
X-axis	mm	0.014
Z-axis	mm	0.05
Repeated positioning accuracy
X-axis	mm	0.006
Z-axis	mm	0.016
Center height
From bed	mm	625
From ground surface	mm	1275
Overall dimension (L* W * H)	mm	850027252450
Standard configuration: 1. CNC control system: Siemens 828D 2.Domestic 22kW frequency conversion main motor 3. Imported high-precision spindle bearings 4. Manual tail seat 5. Vertical four-station electric tool holder 6. Imported brand lead screw 7. φ1000 manual four-jaw chuck 8. Two axis automatic lubrication 9. Cooling device 10.The floor mat iron (technical foot hole configuration)	Selective configuration: 1. CNC system FANUC(two-axis motor with the system configuration) 2. Other specifications three or four jaw chuck 3. Heidenhain/Fager grating ruler 4. Axle parts bearing capacity 8 tons 5. Various specifications steady rest and roller 6. Siemens/FANUC main motor 7. Other specifications power tool holder 8. Semi-closed protection 9. Chain plate chip extractor 10. Various specifications boring tool base 11. Small spindle tailstock 12. Electric tailstock
