Name: 1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe
Brand: Shanghai HD M&E Tech Co., Ltd.
SKU: CW61125
Availability: InStock

Haus > produits > Herkömmliche Drehbank-Maschine >

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe

Guide Rall Width Of 970mm

Max.length of wordpiece 20m

Spindle bore 130mm

Herkunftsort:

CHINA

Markenname:

Zertifizierung:

CE ISO

Modellnummer:

CW61125

Kontakt mit uns

Bitte um ein Angebot

Einzelheiten zum Produkt

Marke:

Typ:

CW61125

Produktname:

Schwere Handdrehmaschine

Max.Swing-Durchmesser über dem Bett:

1250 mm

Max.Swing-Durchmesser über dem Wagen:

900 mm

Breite des Betts:

970 mm

Max.Länge des Werkstücks:

1000mm-15000mm

Spindelbohrungsdurchmesser:

φ130mm

Zahlungs- und Versandbedingungen

Min Bestellmenge

1 Set

Preis

Verhandlungsfähig

Verpackung Informationen

Holzpaket Standard für den Seeschifffahrt

Lieferzeit

30 Tage

Versorgungsmaterial-Fähigkeit

50 Sätze pro Monat

VERWANDTE PRODUKTE

Video

CW6180F Schwere Horizontale Konventionelle Drehmaschine, Hochsteife Führungsbahnen, Breite 600 mm, Bodenständige Manuelle Drehmaschine

Beste Preis erhalten

Video

SMTCL Horizontale manuelle Drehmaschine CA6140 1000mm Lücke Bett manuelle Drehmaschine

Beste Preis erhalten

Video

SMTCL 2000mm Manuelle Spaltbettendrehmaschine CA6150B/A Manuelle Metalldrehmaschine

Beste Preis erhalten

Video

Universelle Drehmaschine CW6263B Gap-Bettdrehmaschine Hochleistungsdrehmaschine Schwerlastdrehmaschine Große horizontale Handdrehmaschine

Beste Preis erhalten

Kontakt mit uns

+8613916455787

sales@huidijd.com

86-021-61195255

Kontaktieren Sie uns jetzt

Beschreibung des Produkts

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe 0

Product Description:

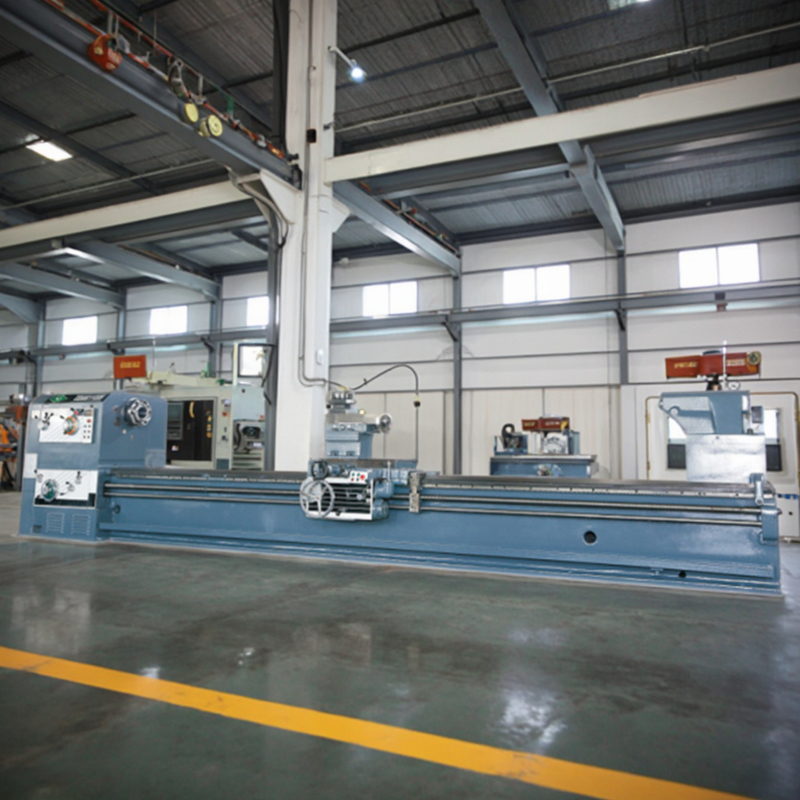

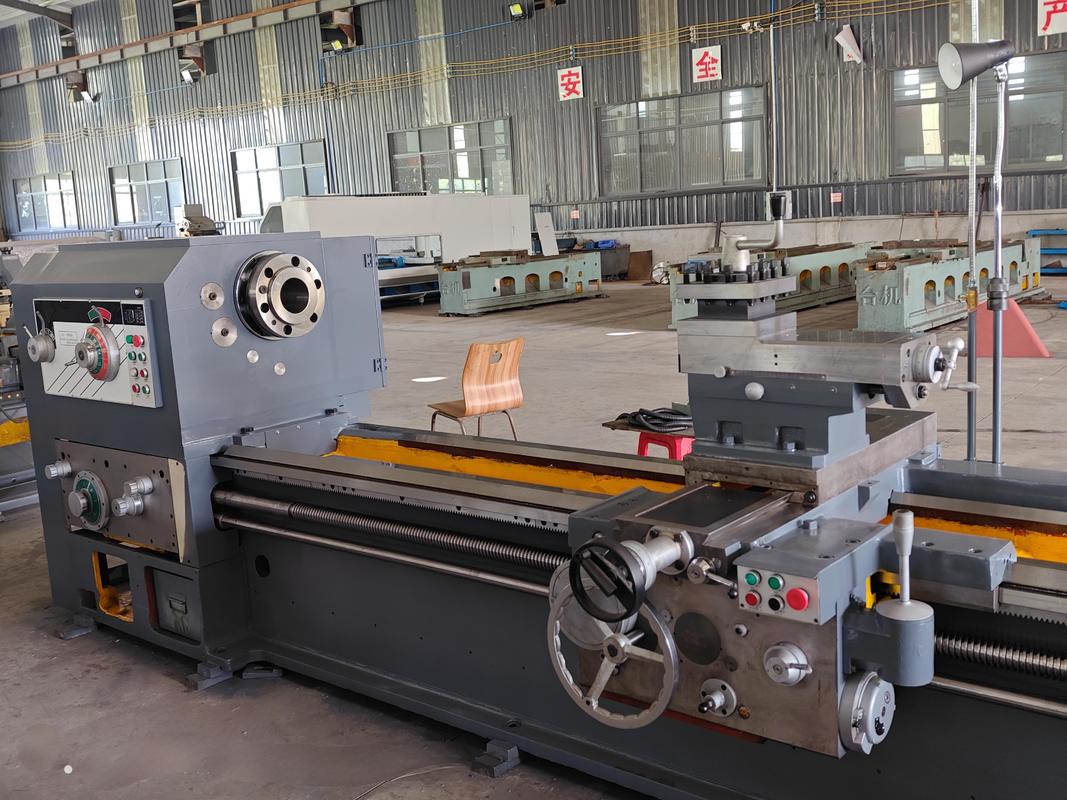

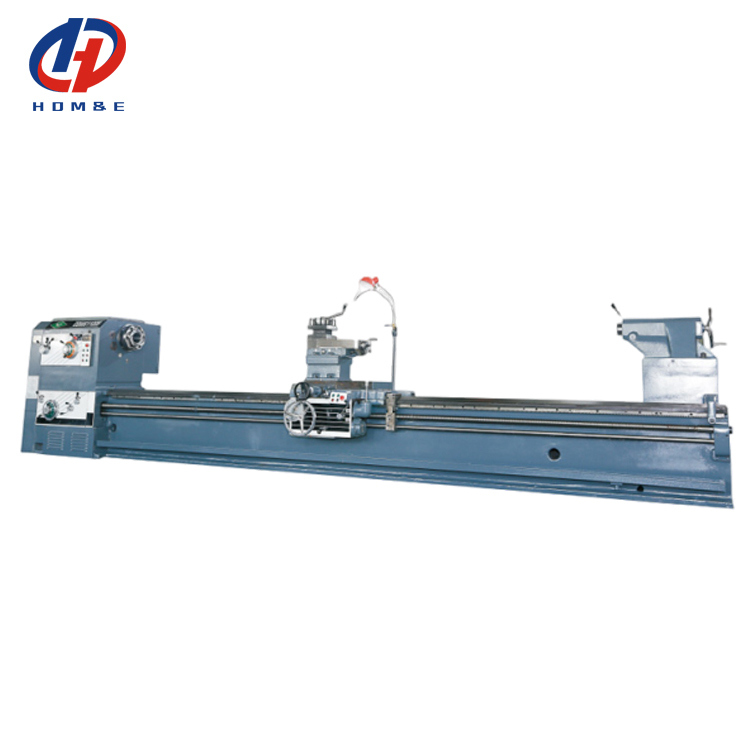

1-15m Heavy Lathe CW61125 Guide Rall Width Of 970mm Horizontal Manual Lathe

Features of this machine: This machine tool is a regular horizontal lathe, which adopts advanced processing and assembly technology, highprecision, good stablity, high rigidity, high speed, large through-hole diameter, and wide range of use. lt is designed for turing blackmetal, non-ferrous metal, and some non-metalic material parts with hard alloy and hich-speed steel cuting tools. This machine toois suitable for rough and fine machining of various complex rotary surfaces, and can also perform cuting, boring, threading and other machining.

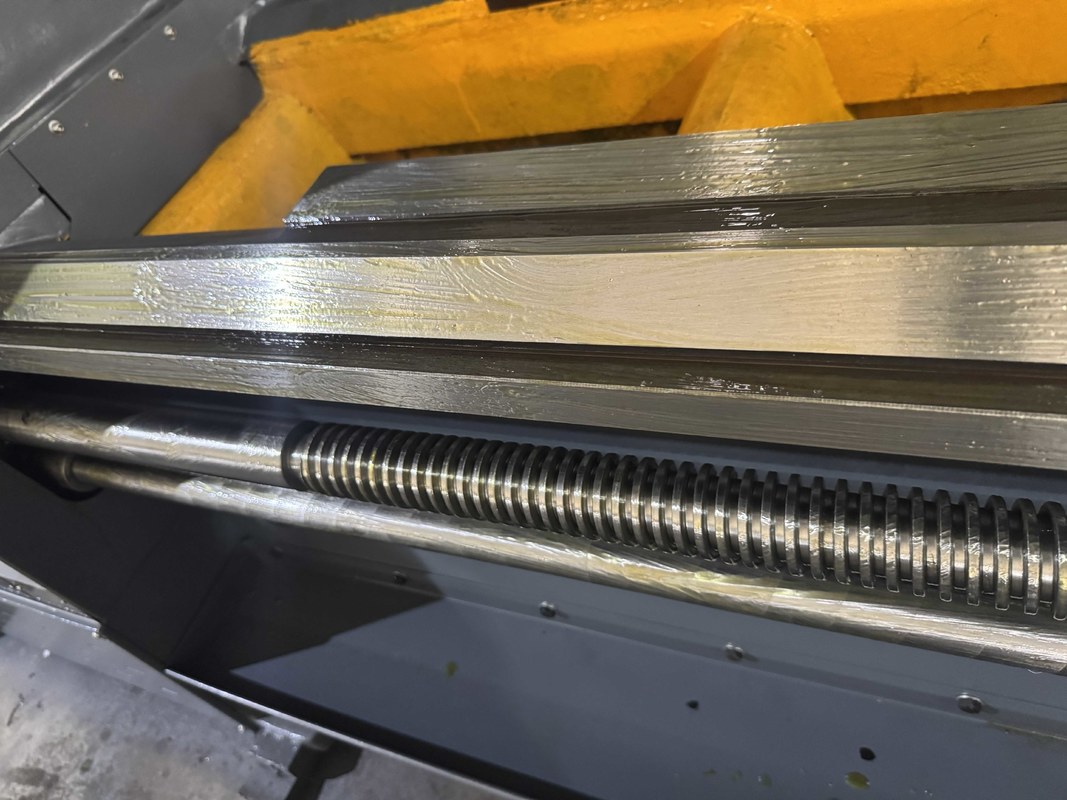

The main structure of this machine tool is a solid loor type bed body, plastic coated guide rall surace, good wear resistance, and guide rallwidth of 970mm. The guide rall adopts medium frequency Quenching, processing length can reach up to 20 meters. The feed adopts theprinciple of mechanicaltransmission.

Product Details:

Product Paramenters:

Project	Main parameter	Unit	CW61125
Plus work fan around	Max.swing over bed	mm	1250
	Max.swing over carriage	mm	900
	Max.length of wordpiece	mm	1000/1500/2000/3000/4000/5000/6000/8000/10000/12000/15000
	Max.cutting length	mm	850/1350/1850/2850/3850/4850/5850/6850/7850/9850/11850/14850
	Two top max. weight bearing capabilities	kg	10000(15000)
Spindle	Spindle bore	mm	130
	Taper hole in spindle	mm	1:20(140 Metric)
	Main hole in spindle	ISO	A2-15
	Diameter of the front bearing position of the spindle	mm	220
	Number of types of spindle rotation and rotational speed	r/min	21 kinds 3.15-315
	Number of spindle reversals and rotational speed	r/min	21 kinds 5-400
	Power of main motor	kw	22(30)
	Manual chuck diameter	mm	1000
Bed structure	Width of bed	mm	970
	Bed structure	mm	Whole floor bed frame
	Lateral feed	mm	730
	Vertical feed	mm	1000-15000
	Rapid horizontal/vertical movement	m/min	4/8
Enter to fanaround	Longitudinal feedes 64 Kinds	mm/(in/r)	0.1~12
	Transverse feeds 64kinds	mm/(in/r)	0.05~6
	64 feed rates on the upper tool rest	mm/(in/r)	0.025-3
	Metric threads 56 kinds	mm	1~240
	Whitworth threads 56kinds	tpi	30-1/4
	Module threads 53 Kinds	mm	0.5~60
	Diametral threads 24 kinds	D.P.	60-0.5
	The ratio of the feed rate of the upper tool holder to the longitudinal feed rate	mm	1/4
	Machine tool screw pitch	mm	12
	Fast motor power	kw	1.5
Tailseat	Diameter of tailstock sleeve	mm	160(220)
	Tail socket travel	mm	300
	Tailstock sleeve taper hole	mm	Morse 20
	Top socker taper(metric)	metric	Number 6

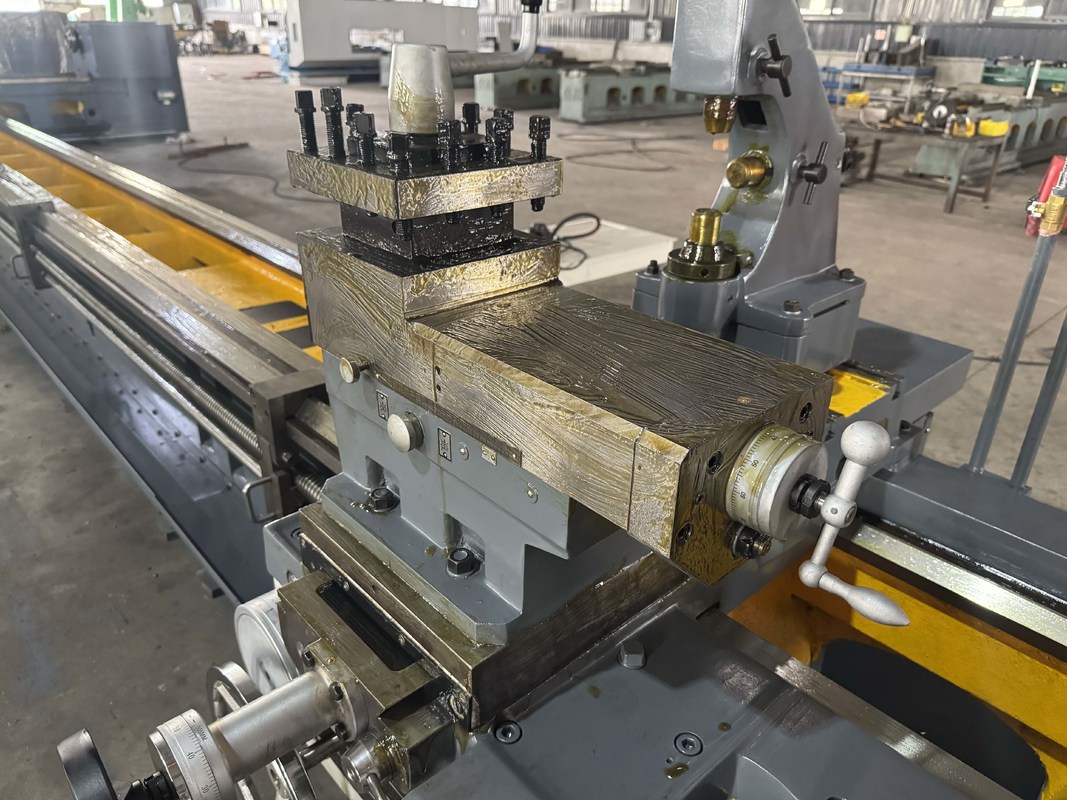

Tool carrier	Knife holder form	type	vertical 4 station
	Cutting tool cross-sectional dimensions	type	45×45
	Rotation angle of knife holder		±90°
	Max. lateral travel of the lower knife holder	mm	500
	Max. lateral travel of upper knife holder	mm	300
	Quick vertical/horizontal movement speed of the tool holder	mm	3740/1870
	Quick movement speed of small knife holder	mm/min	935
	Cooling pump motor power	mm/min	0.125
Inspection items	Processing accuracy	kw	IT6/IT7
	Processing roundness	level	0.008
	Processing workpiece cylindricity	mm	0.03/300
	Processing workpiece flatness	mm	0.033/500
	Roughness	mm	Ra1.6
	Spindle end face	mm	0.008

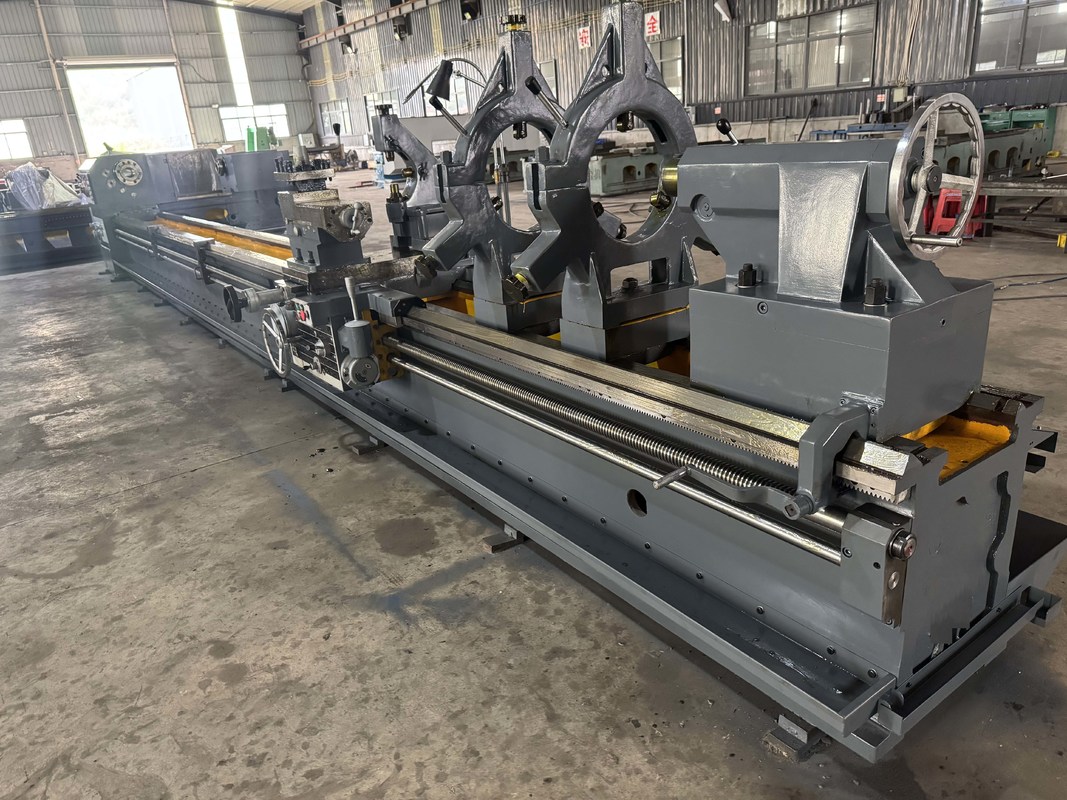

Machine tool standard accessories: spindle and tail frame top sleeve: Φ1000 four jaw chuck: Adjusting pad iron; Anchor bolt; Cool the water tank. Note:3000mm and above 3000mm with 50-600mm center frame;Φ50-250mm tool holder Optional accessories:Φ1250 four jaw chuck:Φ250-800mm center frame

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:

◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production

About Us:

Welcome to visit us!

Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.

Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!

Our Factory:

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.

Q2. What's your main products of your company?

We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.

Q3. Can you provide customized machine or SPM (Special purpose machine)?

Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.

Q4: What's your warranty terms?

We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.

Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system

Q6: Why choose your company?

Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.

Q7: Can your company send the technical personnel to our company and direct our workers overseas?

We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.

Q8: What's the Payment Terms?

T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
