Cylinder CNC Vertical Honing Machine HDHJ5068 Precision Automotive Internal Honing Machine

Cylinder CNC Vertical Honing Machine HDHJ5068 Precision Automotive Internal Honing Machine

Customizable

Servo motor control

High precision

Herkunftsort:

CHINA

Markenname:

HD

Zertifizierung:

CE ISO certification

Modellnummer:

HDHJ5068

Kontakt mit uns
Bitte um ein Angebot
Einzelheiten zum Produkt
Markenname:
HD
Modellnummer:
HDHJ5068
Schlüsselwort:
Vertikal schleifende und schleifende Maschine
Zahlungs- und Versandbedingungen
Min Bestellmenge
1
Verpackung Informationen
Holzgehäuse, Zinnkofferraum, sonstige seegunktige Verpackungen.
Lieferzeit
45-60 Tage
Zahlungsbedingungen
T/T,L/C,Western Union
Versorgungsmaterial-Fähigkeit
50 Sätze pro Monat
Beschreibung des Produkts

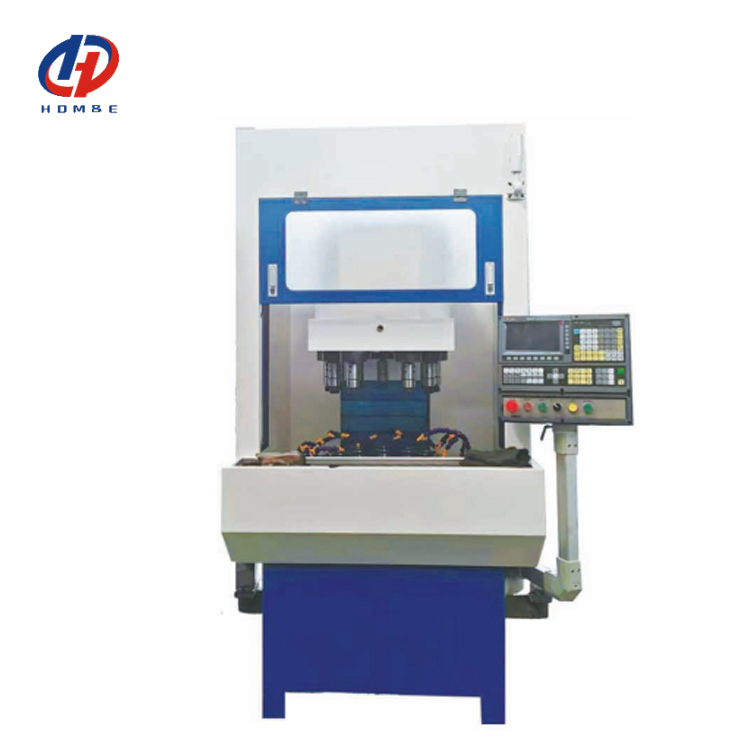

Cylinder CNC Vertical Honing Machine HDHJ5068 Precision Automotive Internal Honing Machine 0

Product Description:

Cylinder CNC Vertical Honing Machine HDHJ5068 Precision Automotive Internal Honing Machine

Honing and Reaming Machine is a kind of used for finishing machinery and equipment on the surface of the metal inner hole. It is mainly used for precision work internal hole, in order to obtain higher surface finish and dimensional accuracy.

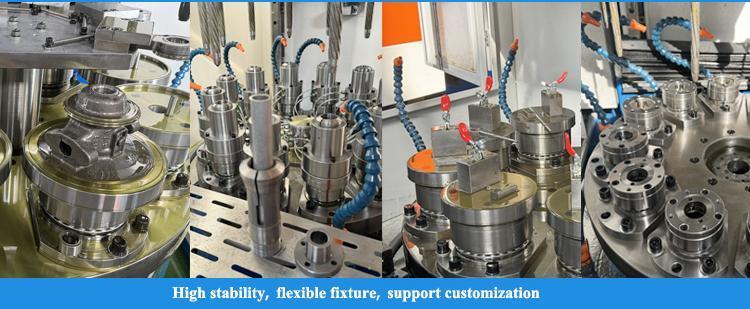

Cylinder CNC Vertical Honing Machine HDHJ5068 Precision Automotive Internal Honing Machine 1

Product Features:

1,High processing accuracy: up to 0.5-5μm dimensional accuracy, surface roughness up to Ra 0.1-0.4μm.
2,High processing efficiency: short processing time, can greatly improve production efficiency.
3,Good surface quality: smooth and uniform inner hole surface can be obtained to improve the service life of parts.
4,Wide applicable scope: manufacture all kinds of inner hole of the metal materials, such as steel, aluminum alloy, etc.
Product Details:

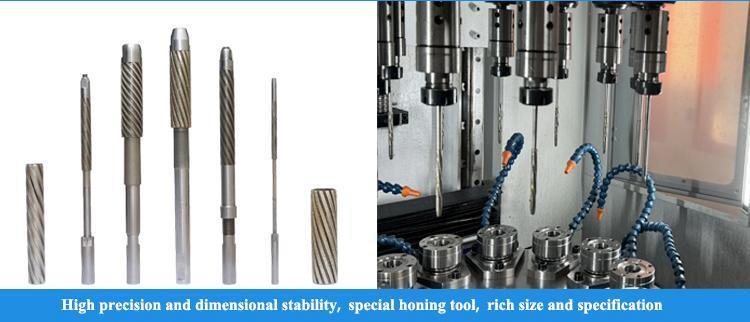

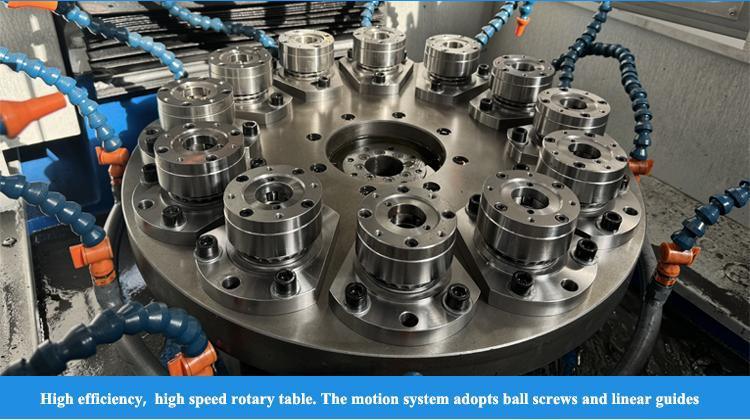

Cylinder CNC Vertical Honing Machine HDHJ5068 Precision Automotive Internal Honing Machine 2
Product Paramenters:
Main technical specifications
Unit
HDHJ5068
Machine features

6-axis 8-station
Number of spindle
Pcs
6
Number of worktable transposition
Pcs
8
Worktable positioning method

splitter
Worktable drive power
kw
0.37
Worktable diameter
mm
690
Worktable rotation time for one station
s
1.1
Distance from spindle end face to table surface
mm
760
Main body weight
T
2.6
Dimension of mainframe(L*W*H)
mm
1725×1260×2600
Max. honing diameter
mm
50(60 optional)
Max. honing depth
mm
200
Spindle drive type

servo motor
Max. spindle speed
r/min
600
Spindle reciprocating drive power
kw
3.1
Max. spindle travel
mm
620
Max. spindle reciprocating speed
m/min
20
Control system

Nanjing CNC/Siemens PLC

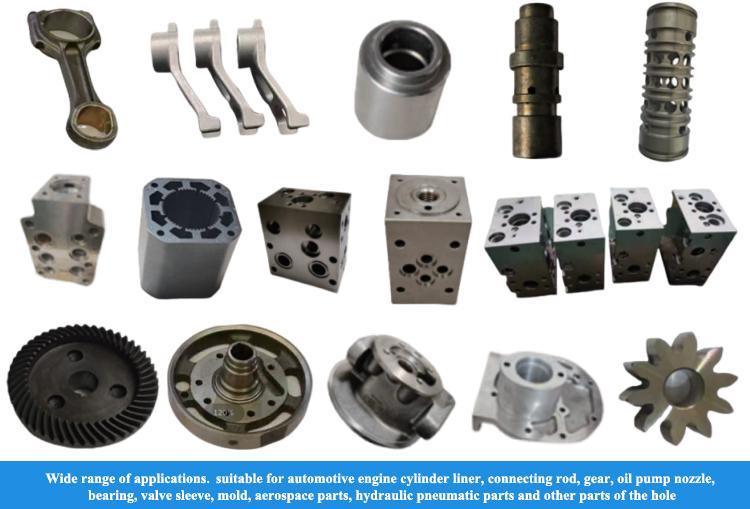

Industry application:

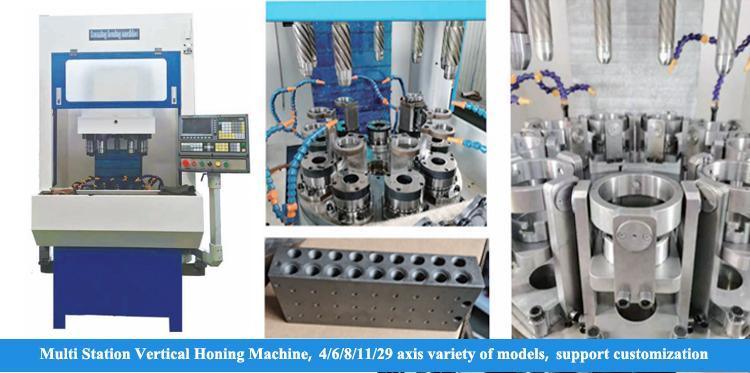

Cylinder CNC Vertical Honing Machine HDHJ5068 Precision Automotive Internal Honing Machine 3Cylinder CNC Vertical Honing Machine HDHJ5068 Precision Automotive Internal Honing Machine 4

OUR Service:

Ensure you receive a high quality machine
1. Every parts need be inspected
2. Over 100 production process control
3. Over 200 inspection items
4. Sample processing of each machine
5. 72 hours trial run before delivery

Why Choose Us:
◆ Top quality sense, customers' requests come first
◆ 30 years + R & D history, the company was founded in 1993
◆ High-tech manufacturer with research anddesign capacity
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(24 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, not affect production
About Us:
Cylinder CNC Vertical Honing Machine HDHJ5068 Precision Automotive Internal Honing Machine 5
Welcome to visit us!
Shanghai HD M&E Tech Co., Ltd is located in Shanghai, China. We specialize in CNC lathe, vertical machining center, horizontal machining center, gantry machining center, five-axis machining center, turn-milling center and various other CNC equipment. We have more than 200 kinds of machine tools. The quality and technology of products have reached the international advanced level.
Our factory has over 80 years’ history of manufacturing machine tools. The first lathe, drilling machine and boring machine were all born here. They have been one of the leader of China's Machine Tool industry and the largest machine tool manufacture in China. Machine tool products cover automobiles, aviation, new energy, construction machinery, ships, pump valves, bearings, 3C electronics, molds and other industries. We take the mission of providing the machine tools with leading technology, high quality and good service to our customers all over the world!
Our Factory:
Cylinder CNC Vertical Honing Machine HDHJ5068 Precision Automotive Internal Honing Machine 6

FAQ:

Q1. Are you a trade company or manufacturing company?

We are a manufacturing company.
Q2. What's your main products of your company?
We specialized in all kinds of machines, such as CNC Lathe, CNC Milling Machine, Vertical Machining Center,Conventional Lathe, Drilling Machine, Radial Drilling Machine, and so on.
Q3. Can you provide customized machine or SPM (Special purpose machine)?
Yes, we provide Smart CNC solutions for our customer in order to increase efficiency.
Q4: What's your warranty terms?
We will supply a replacement for parts that prove to be defective for a period of 12 months,
starting on the machine's bill of lading date.
Q5. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q6: Why choose your company?
Products from the development, design, manufacture, assembly of the entire production process are
carried out between plants with a complete production chain which is your most reliable guarantee.
Q7: Can your company send the technical personnel to our company and direct our workers overseas?
We can supply this kind of service. When the machines arrive the buyer's installation site, we can timely send mechanical and electrical engineers to install according to the buyer's schedule. All these can be quoted and list in the contract. The seller will cooperate with the buyer to deal with visa and installation preparation before going abroad.
Q8: What's the Payment Terms?
T/T 30% initial payment when order, 70% balance payment before shipment. irrevocable letter ofcredit at sight
